Frame
SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
-
Fork
RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel
-
Shock

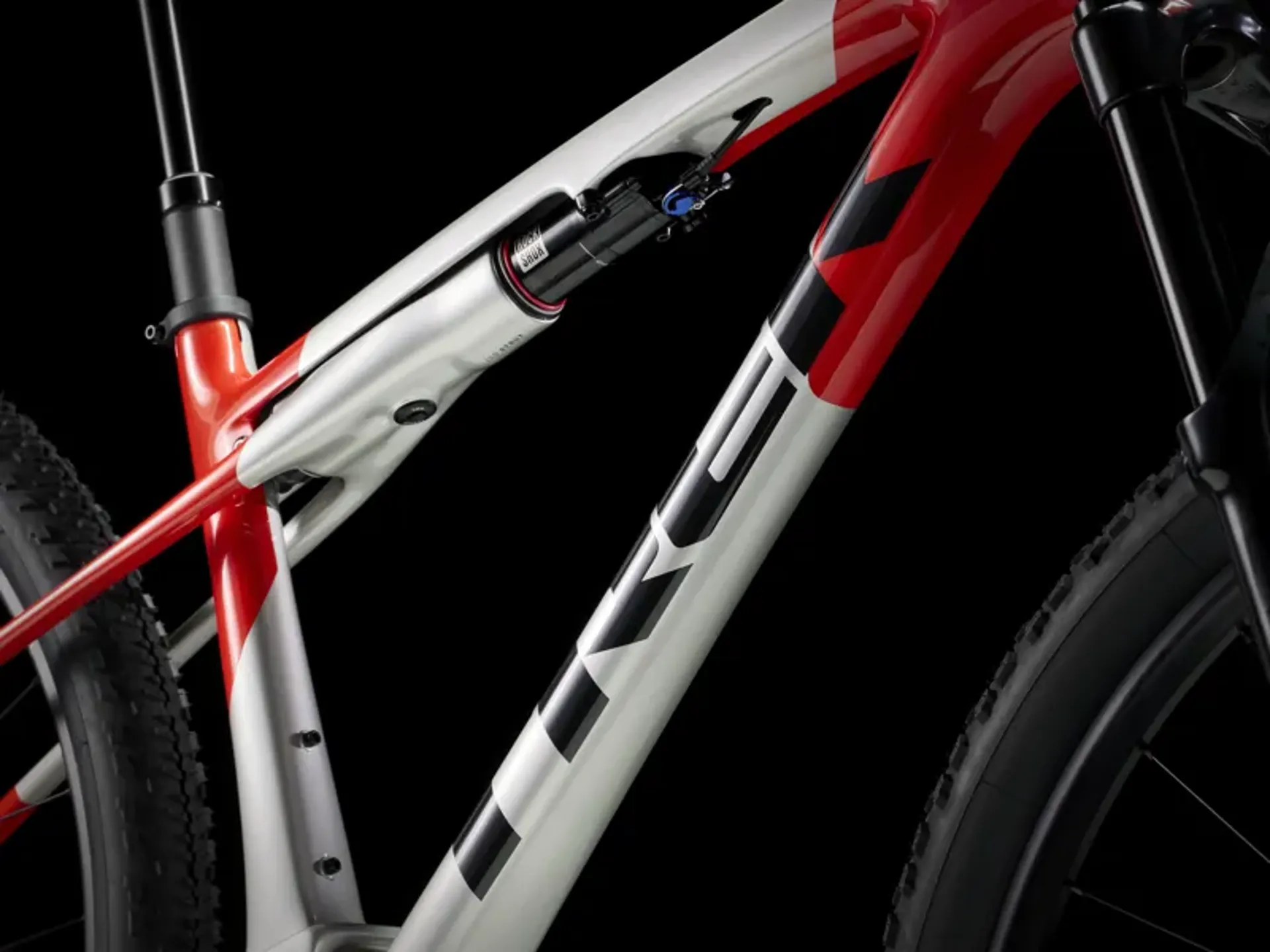

Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper
-
Suspension part
Bontrager Drop Lock remote
-
Max compatible fork travel
120 mm (533 mm axle-to-crown)
-
Hub front
Shimano MT400, CenterLock, Boost110, 15 mm thru-axle
-
Hub front
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
-
Hub rear
Shimano MT410B, CenterLock, Boost148, 12 mm thru-axle
-
Hub rear
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
-
Skewer rear
Bontrager Switch thru axle, removable lever
-
Rim
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
-
Tyre
Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40"
-
Tyre
Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20"
-
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
-
Max tyre size
Frame: 29x2.40", Fork: See manufacturer
-
Shifter
Shimano Deore M6100, 12-speed
-

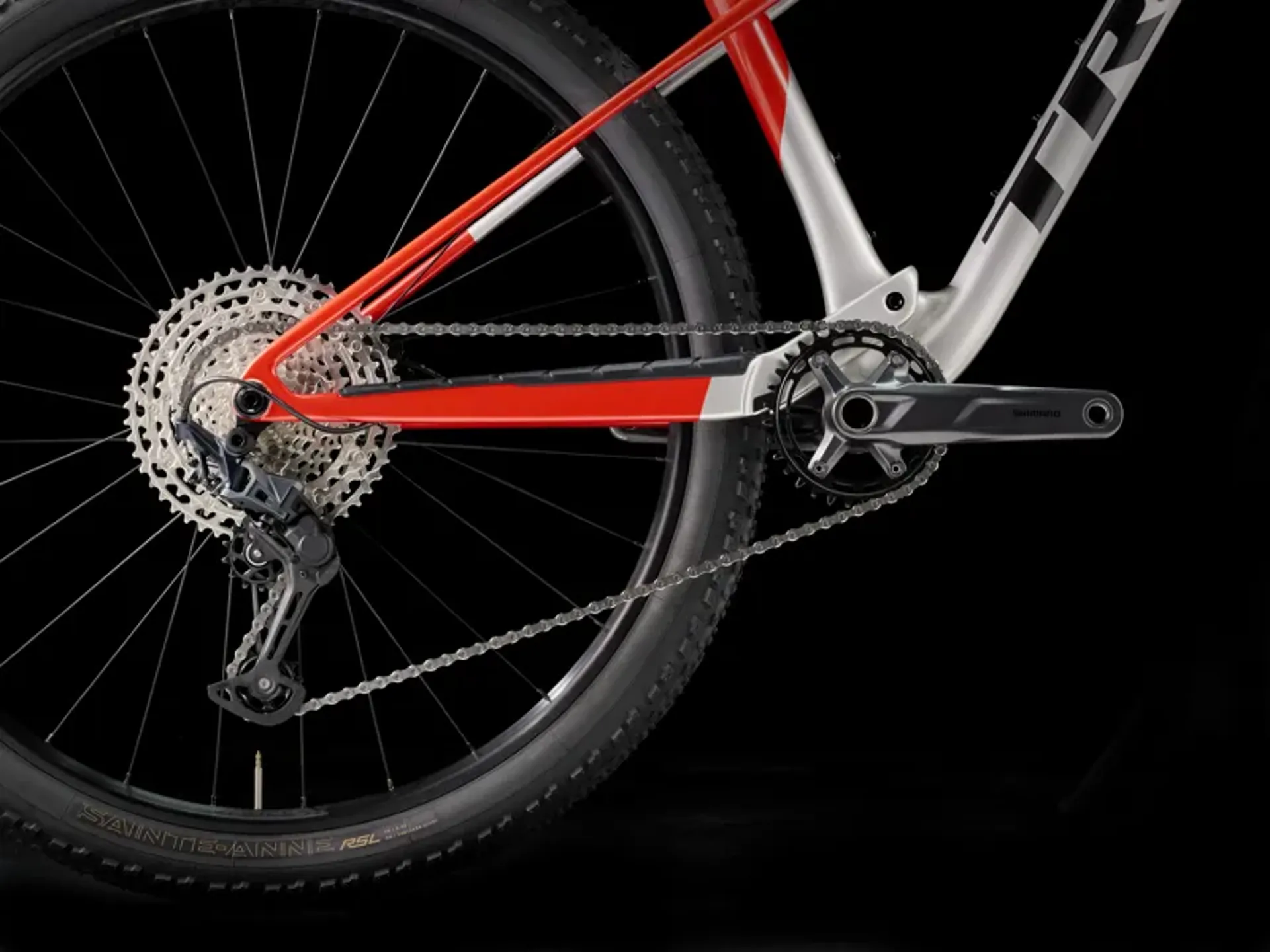

Rear derailleur
Shimano SLX M7100, long cage
-
Crank
Shimano MT512, 32T, 55 mm chain line, 170 mm
-
Crank
Shimano MT512, 32T, 55 mm chain line, 175 mm
-
Bottom bracket
Shimano MT500, 92 mm, PressFit
-
Cassette
Shimano Deore M6100, 10-51, 12-speed
-
Chain
Shimano Deore M6100, 12-speed
-
Max. chainring size
1x: 38T, min 30T
-
Saddle
Bontrager Verse Comp, steel rails, 145 mm width
-
Saddle
Verse Short Comp, steel rails, 145 mm width
-
Seatpost
Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
-
Seatpost
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
-
Seatpost
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
-
Seatpost
TranzX JD-YSP18, 120 mm travel, internal routing, 31.6 mm, 403 mm length
-
Seatpost
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
-
Seatpost
Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
-
Handlebar
Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width
-
Handlebar
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
-
Grips
Bontrager XR Trail Comp, nylon lock-on
-
Stem
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
-
Stem
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
-
Stem
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
-
Stem
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
-
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
-
Brake
Shimano hydraulic disc, MT501 lever, MT500 caliper
-
Rotor size
Max brake rotor sizes – Frame: 160 mm, Fork: see fork manufacturer
-
Tool
Bontrager Switch Lever, w/tool
-
Weight
M - 13.28 kg/29.28 lb (with TLR sealant, no tubes)
-
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
