Mainframe
SLR OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel
-
Fork
RockShox SID SL Ultimate, Flight Attendant Race Day damper, Stealth DebonAir spring, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 110mm travel
-

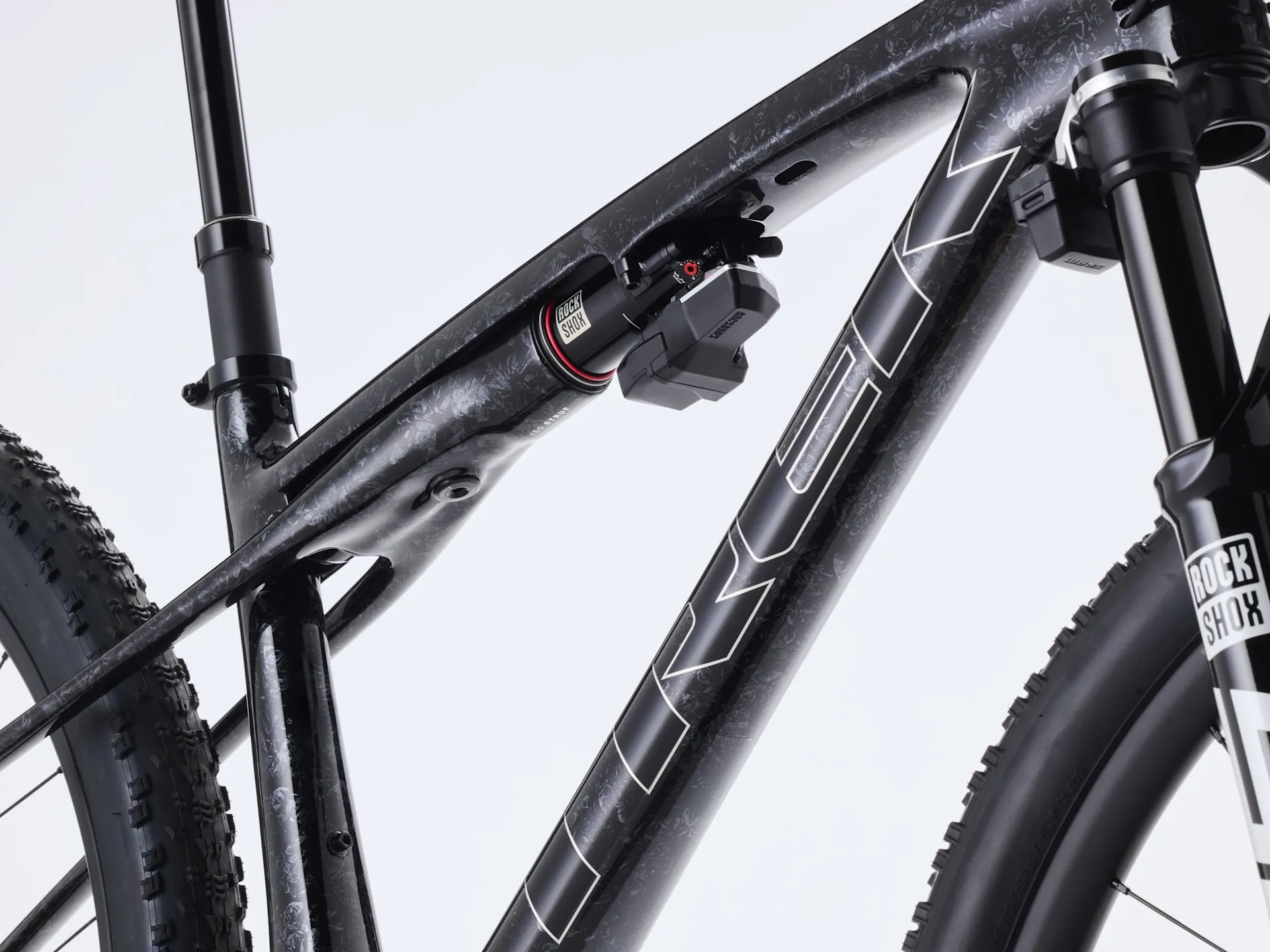

Shock
Trek IsoStrut, RockShox SIDLuxe, Flight Attendant RL3 damper
-
Front Wheel
Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
-
Rear Wheel
Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Boost148, 12mm thru axle, 29''
-
Rear Skewer
Bontrager Switch thru axle, removable lever
-
Tire
Pirelli Scorpion XC, Tubeless Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x2.20''
-
Tire Part
Bontrager TLR sealant, 6oz
-
Rim Strip
Bontrager TLR
-
Max tire size
Frame: 29x2.40", Fork: See manufacturer
-
Shifter
SRAM AXS pod
-
Rear Derailleur
SRAM X0 Eagle, T-Type
-
Crank
SRAM XO Eagle, DUB, 34T, T-Type, 55mm chainline, 170mm length
-
Crank
SRAM XO Eagle, DUB, 34T, T-Type, 55mm chainline, 175mm length
-
Bottom Bracket
SRAM DUB, 92mm, PressFit
-
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
-
Chain
SRAM X0 Eagle, T-Type, 12 speed
-
Max chainring size
1x: 38T, min 30T
-
Saddle
Verse Short Elite, hollow magnesium rails, 145mm width
-
Seatpost
Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length
-
Seatpost
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length
-
Seatpost
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length
-

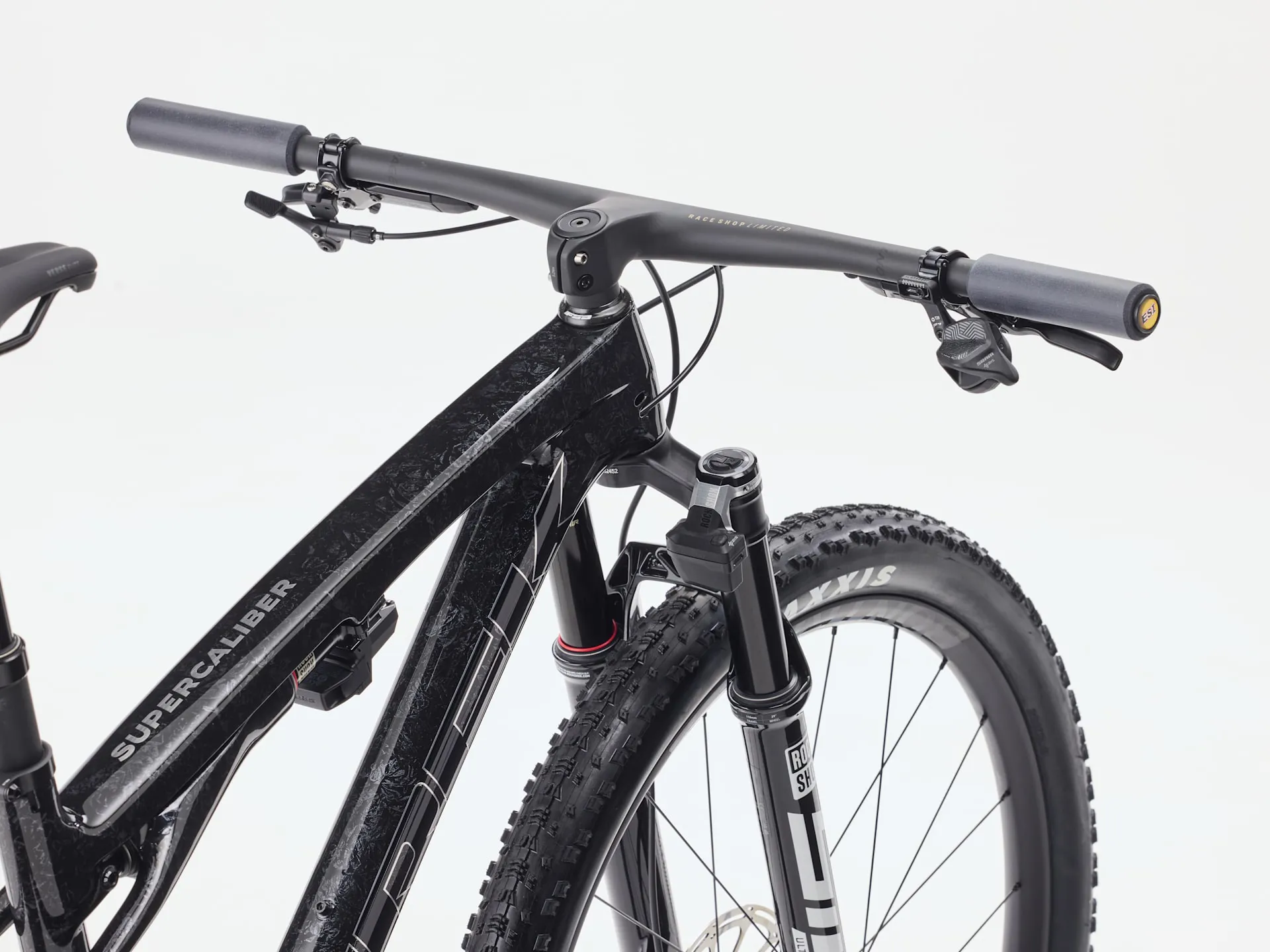

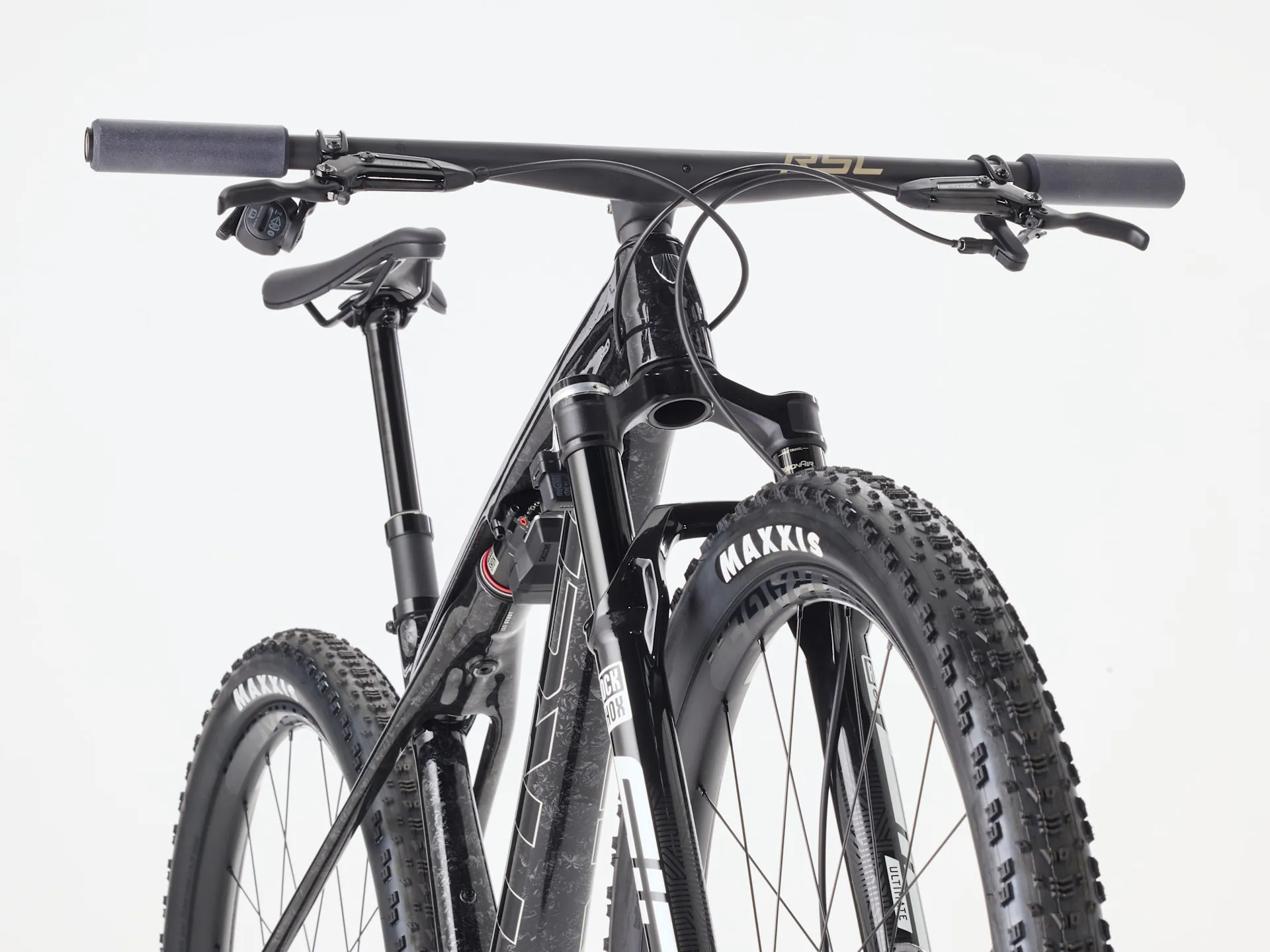

Integrated Bar Stem
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 70mm length
-
Integrated Bar Stem
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 80mm length
-
Integrated Bar Stem
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 90mm length
-
Grips
ESI Chunky
-
Headset
FSA IS-2, 1-1/8'' top, 1.5'' bottom
-
Brake
SRAM Motive Silver 4-piston hydraulic disc
-
Brake Rotor
SRAM Centerline 2.0, 6-bolt, 180mm
-
Brake Rotor
SRAM CenterLine, 6-bolt, round edge, 160mm
-
Brake Rotor
SRAM CenterLine, 6-bolt, round edge, 180mm
-
Rotor size
Max brake rotor sizes - Frame: 160mm
-
Weight
M - 11.28 kg / 24.87 lbs (with TLR sealant, no tubes)
-
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
