Mainframe
SLR OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel
-
Fork
RockShox SID SL Ultimate, Flight Attendant Race Day damper, Stealth DebonAir spring, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel
-

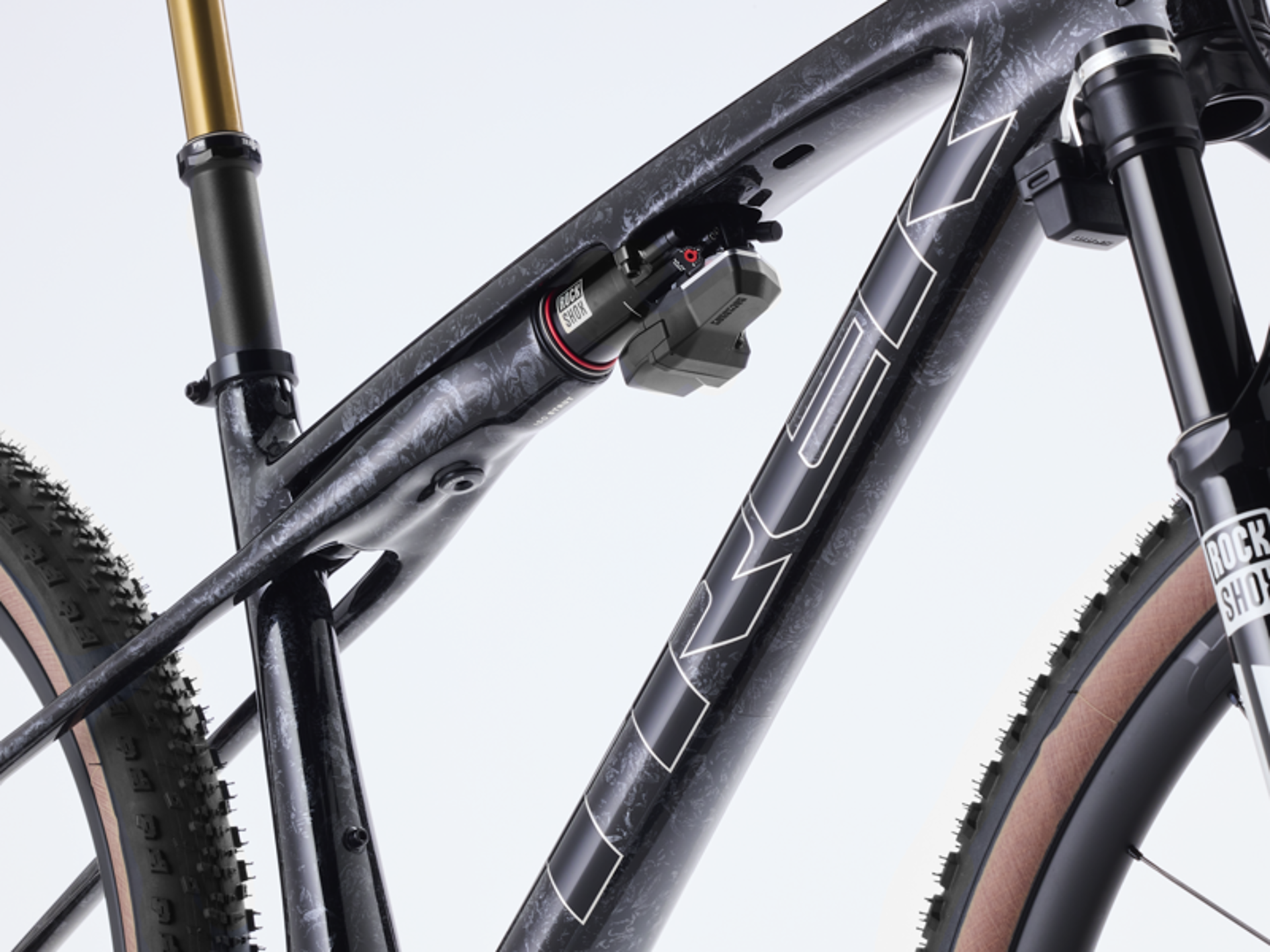

Shock
Trek IsoStrut, RockShox SIDLuxe, Flight Attendant RL3 damper
-
Front Wheel
Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CentreLock, Boost110, 15 mm thru axle, 29"
-
Rear Wheel
Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CentreLock, Boost148, 12 mm thru axle, 29"
-
Rear Skewer
Bontrager Switch thru axle, removable lever
-
Tire
Pirelli Scorpion XC, Tubeless-Ready, Team Edition Pro Wall, aramid bead, 120 tpi, 29x2.20"
-
Tire Part
Bontrager TLR sealant, 180 ml/6 oz
-
Rim Strip
Bontrager TLR
-
Max tyre size
Frame: 29x2.40", Fork: See manufacturer
-
Shifter
SRAM AXS pod
-

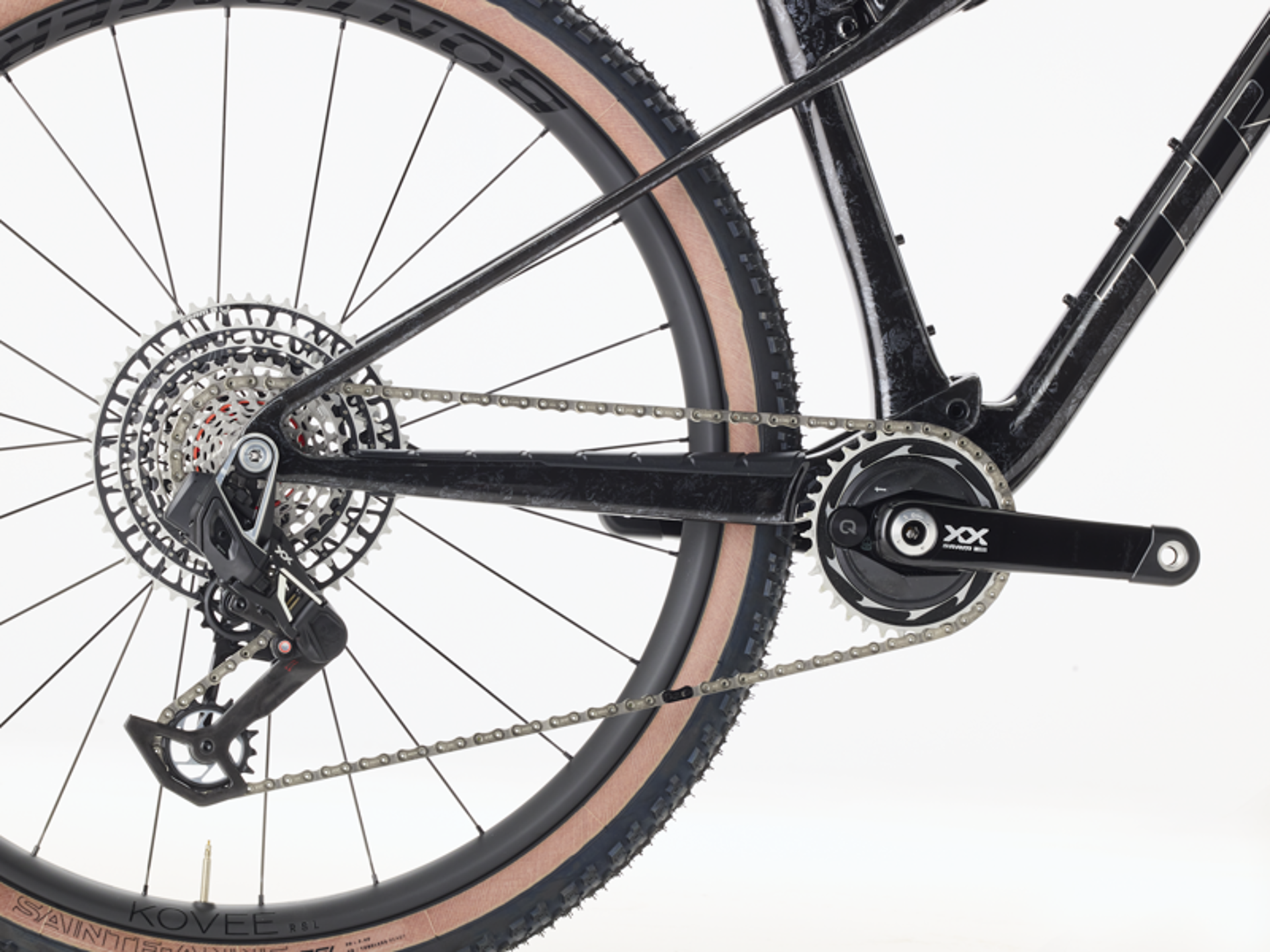

Rear Derailleur
SRAM XX SL Eagle AXS, T-Type
-
Crank
SRAM XX SL, Flight Attendant, DUB Wide, 34T alloy ring, 55 mm chainline, 170 mm length
-
Bottom Bracket
SRAM DUB, 92 mm, PressFit
-
Cassette
SRAM Eagle XS-1299, T-Type, 10-52, 12-speed
-
Chain
SRAM XX Eagle, T-Type, 12-speed
-
Max. chainring size
1x: 38T, min 30T
-
Saddle
Aeolus RSL, carbon rails, 145 mm width
-
Seatpost
Fox Transfer SL, 100 mm travel, internal routing, 31.6 mm
-
Integrated Bar Stem
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length
-
Grips
ESI Chunky
-
Headset
FSA IS-2, 1-1/8" top, 1.5" bottom
-
Brake
SRAM Motive Ultimate 4-piston hydraulic disc
-
Brake Rotor
SRAM CentreLine X, CentreLock, round edge, 160 mm
-
Rotor size
Max brake rotor sizes - Frame: 160 mm
-
Weight
M - 10.28 kg / 22.67 lbs (with TLR sealant, no tubes)
-
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
