Frameset | |
*Frame | Size:S, XL, XS, L, M, ML |

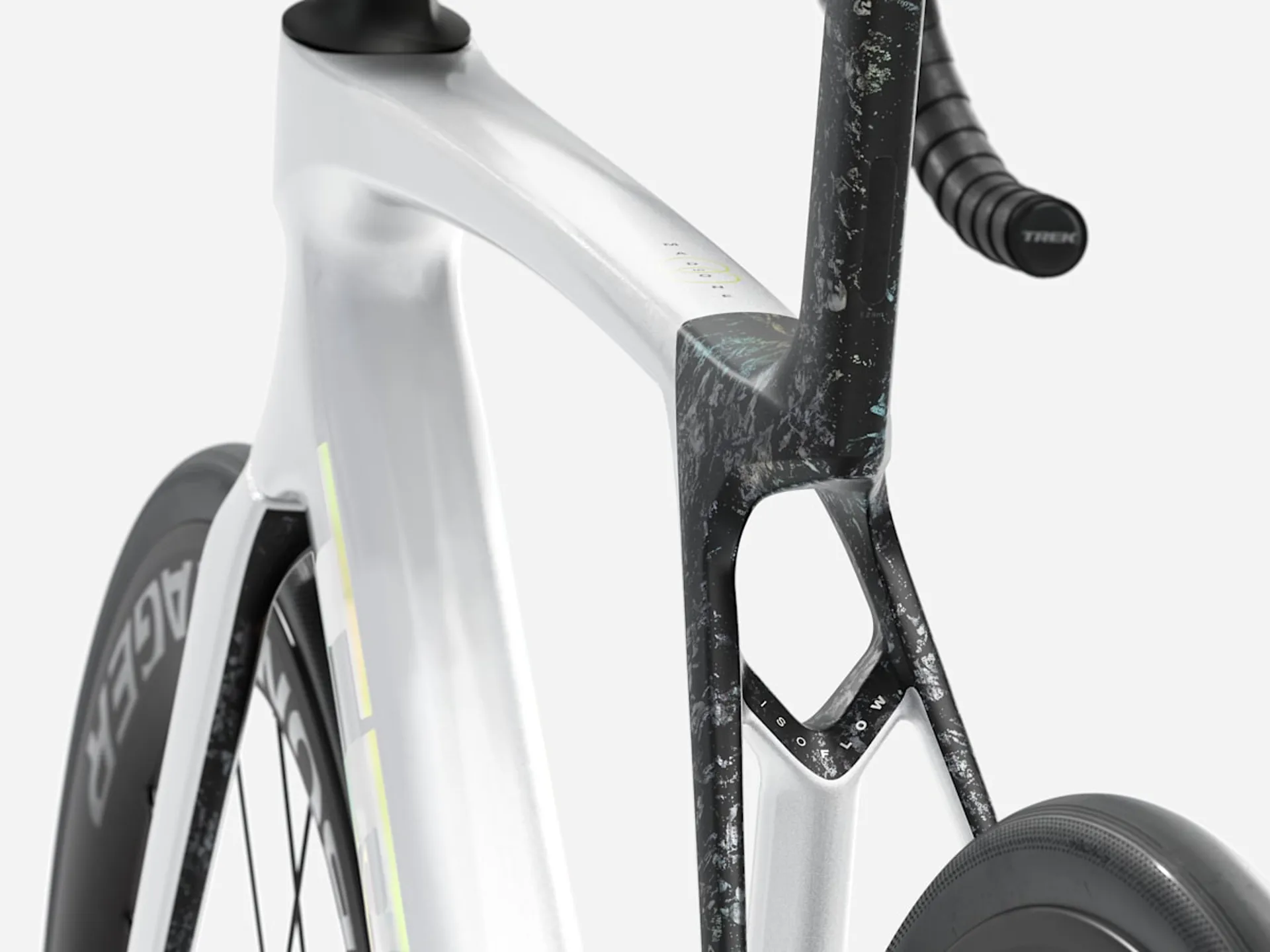

| 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
*Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle |
| |
| |
E-system | |
*Battery | SRAM AXS battery pack (with charger) |
| |
| |

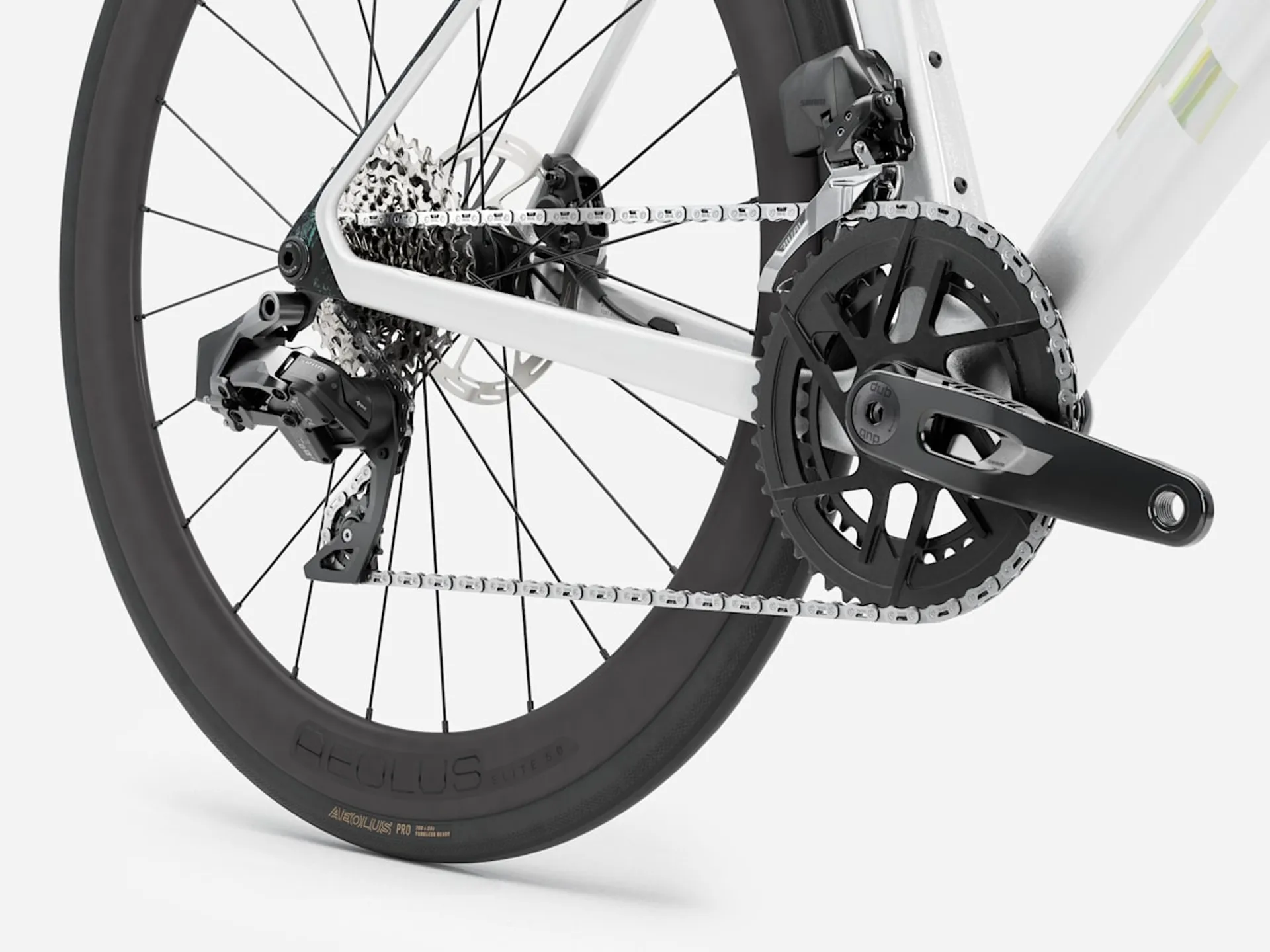

Drivetrain | |
*Shifter | SRAM Rival AXS, 12-speed |
| |
*Front Derailleur | SRAM Rival AXS, braze-on |
| |
*Rear Derailleur | SRAM Rival AXS, 36T max cog |
| |
*Crank | Size:S, XS |
| SRAM Rival AXS, 48/35, DUB, 165 mm length |
| Size:M, ML |
| SRAM Rival AXS, 48/35, DUB, 170 mm length |
| Size:XL, L |
| SRAM Rival AXS, 48/35, DUB, 172.5 mm length |
*Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| |
*Cassette | SRAM XG-1250, 10-36, 12-speed |
| |
Max. chainring size | 1x: 54T, 2x: 56/43 |
| |
Wheels | |
*Front Wheel | Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle |
*Rear Wheel | Size:S, XL, XS, L, M, ML |
| |
*Front Skewer | Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50 mm rim depth, Sram XDR freehub, 142x12 mm thru axle |
*Rear Skewer | Bontrager Switch chamfered thru axle, removable lever |
*Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm |
| |
*Tyre Part | Bontrager TLR sealant, 180 ml/6 oz |
| |
*Rim Strip | Bontrager TLR |
Max tyre size | 32 mm (as measured, see manual for details) |
| |
Components | |
*Saddle | Bontrager Aeolus Elite, austenite rails, 145 mm width |
*Seatpost | Madone aero carbon seat post, 0 mm offset, short length |

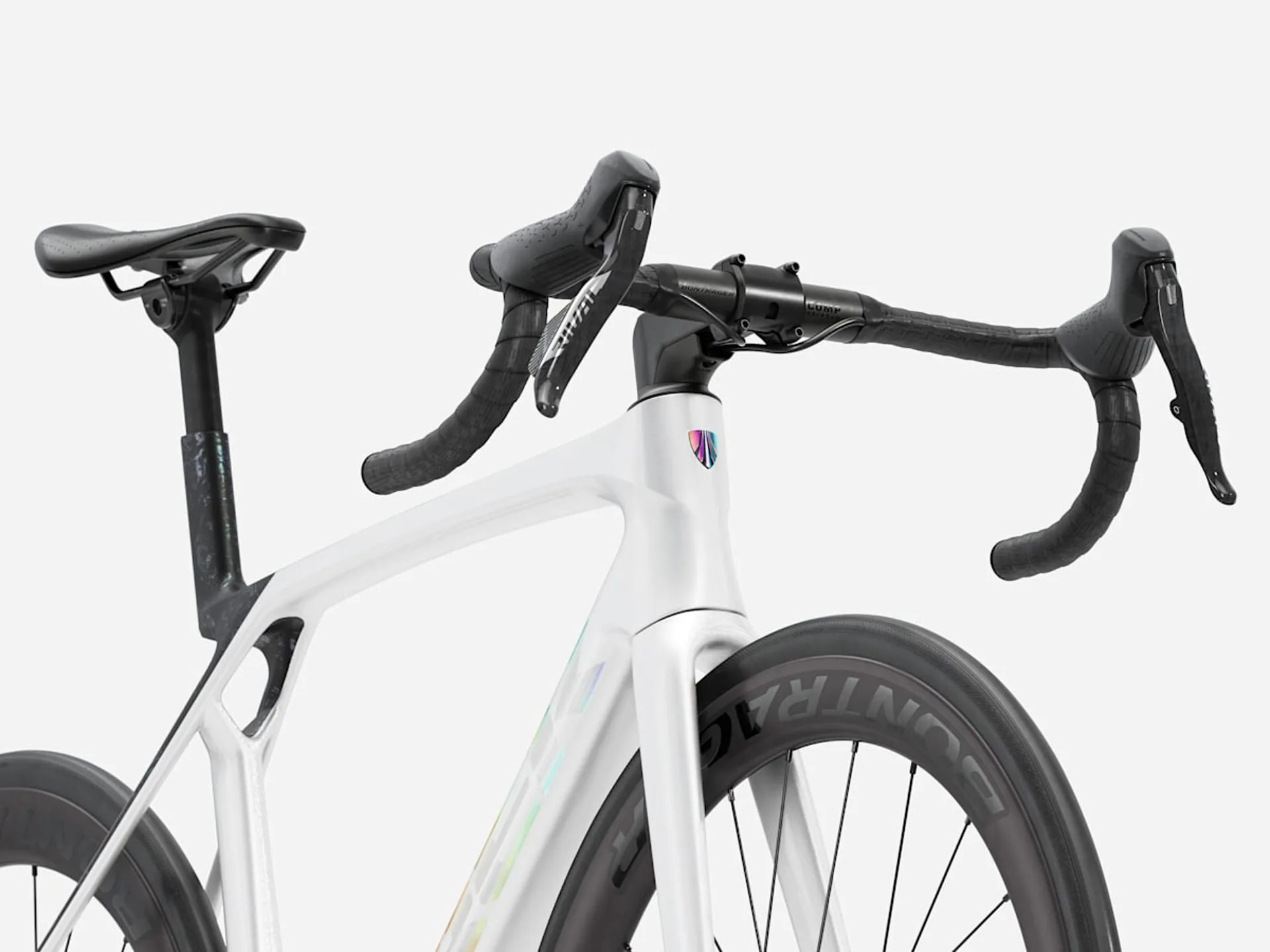

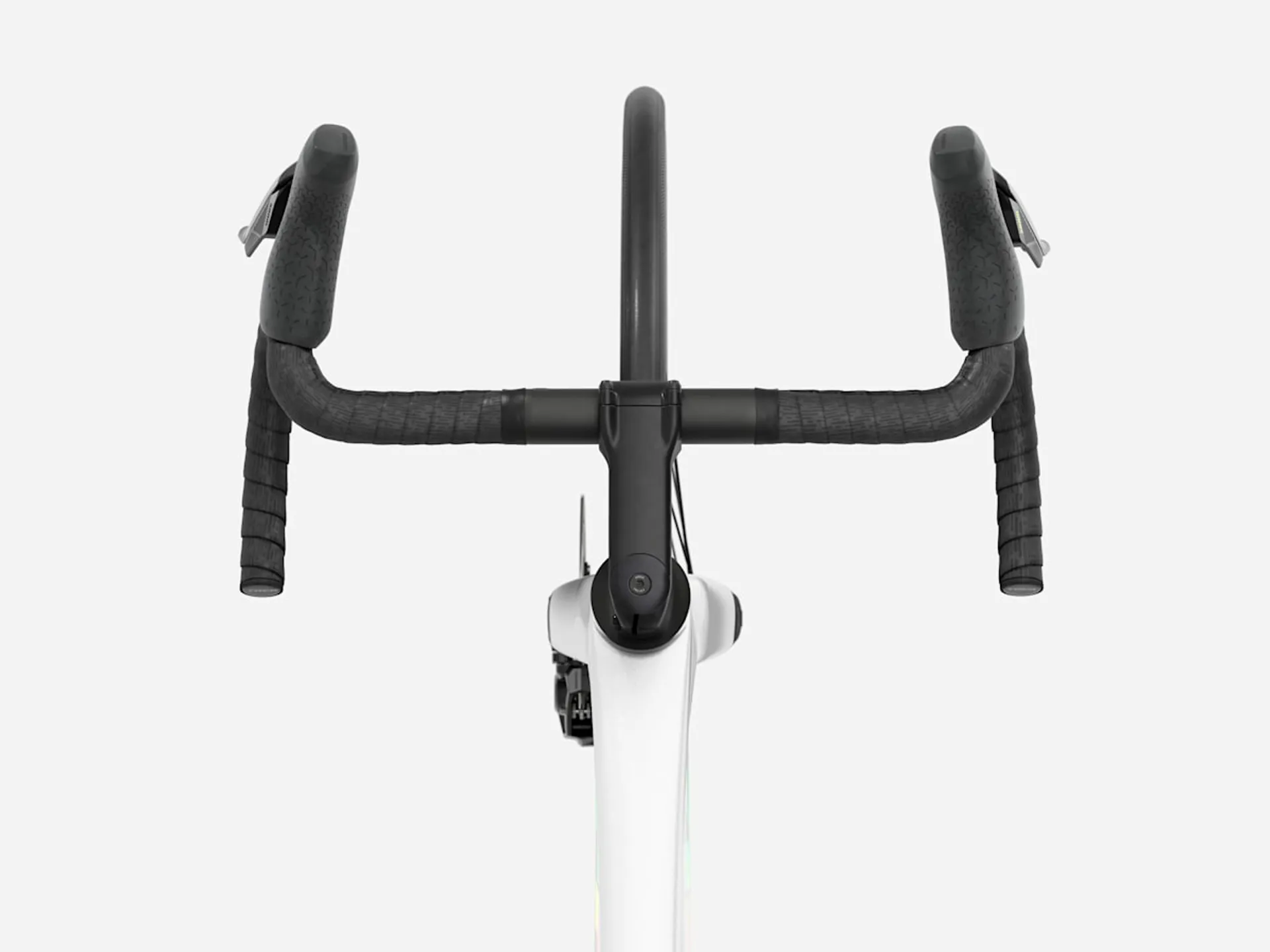

*Handlebar | Size:XSBontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width |
| Size:S, MBontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width |
| Size:L, MLBontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
| Size:XLBontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
*Handlebar Tape | Trek EcoTack |
*Stem | Size:XSTrek RCS Pro, -7-degree, 80 mm length |
| Size:S, MTrek RCS Pro, -7-degree, 90 mm length |
| Size:L, MLTrek RCS Pro, -7-degree, 100 mm length |
| Size:XLTrek RCS Pro, -7-degree, 110 mm length |
*Brake Rotor | SRAM Paceline, rounded, CentreLock, 160 mm |
| |
Rotor size | Max brake rotor sizes: 180 mm front, 160 mm rear |
| |
Weight | |
Weight | ML - 8.11 kg / 17.88 lbs (with TLR sealant, no tubes) |
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
| |
| |
*Please note – spec applies to all sizes unless listed separately |
