Frame

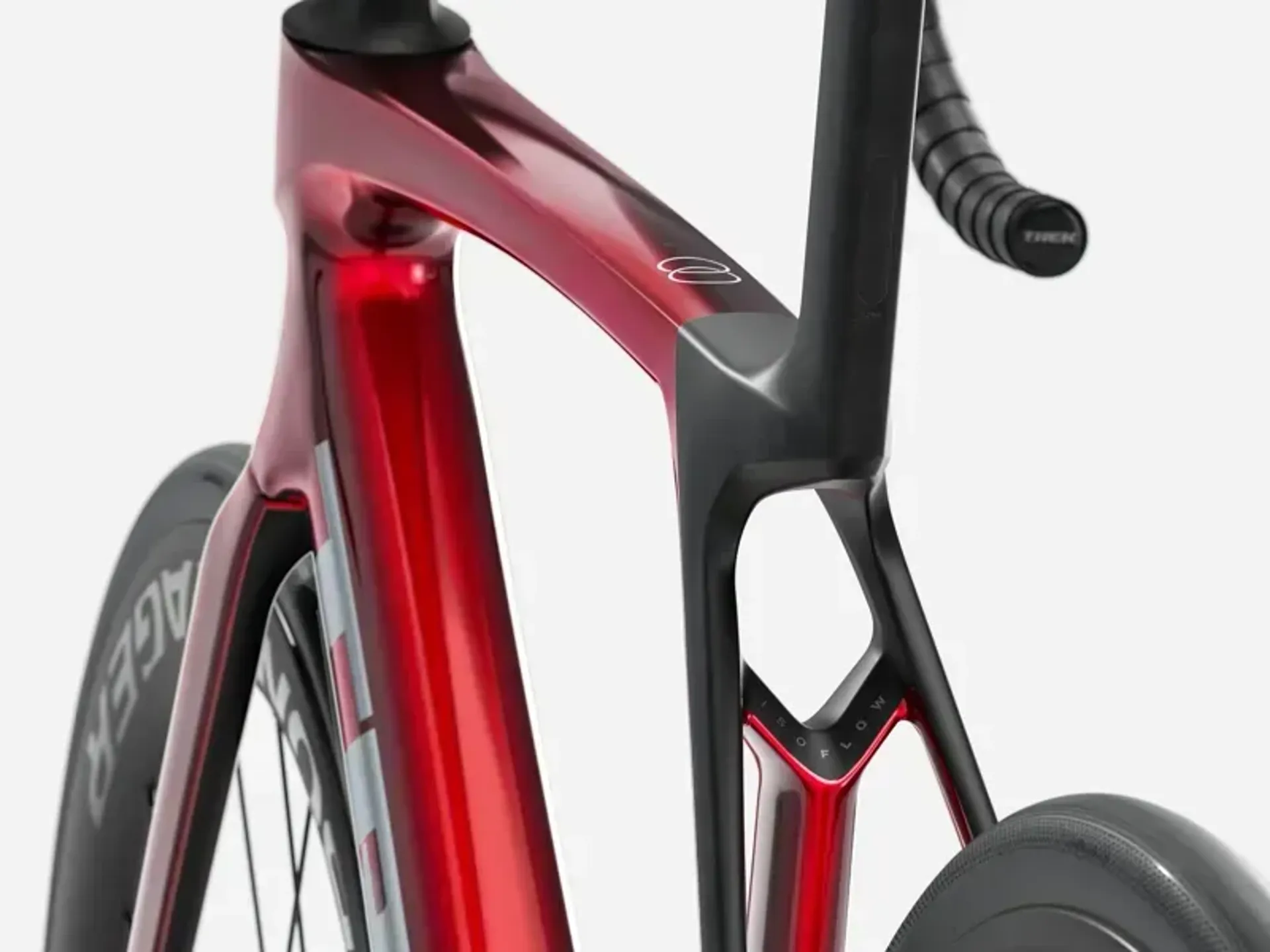

500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
-
Fork
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle
-
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
-

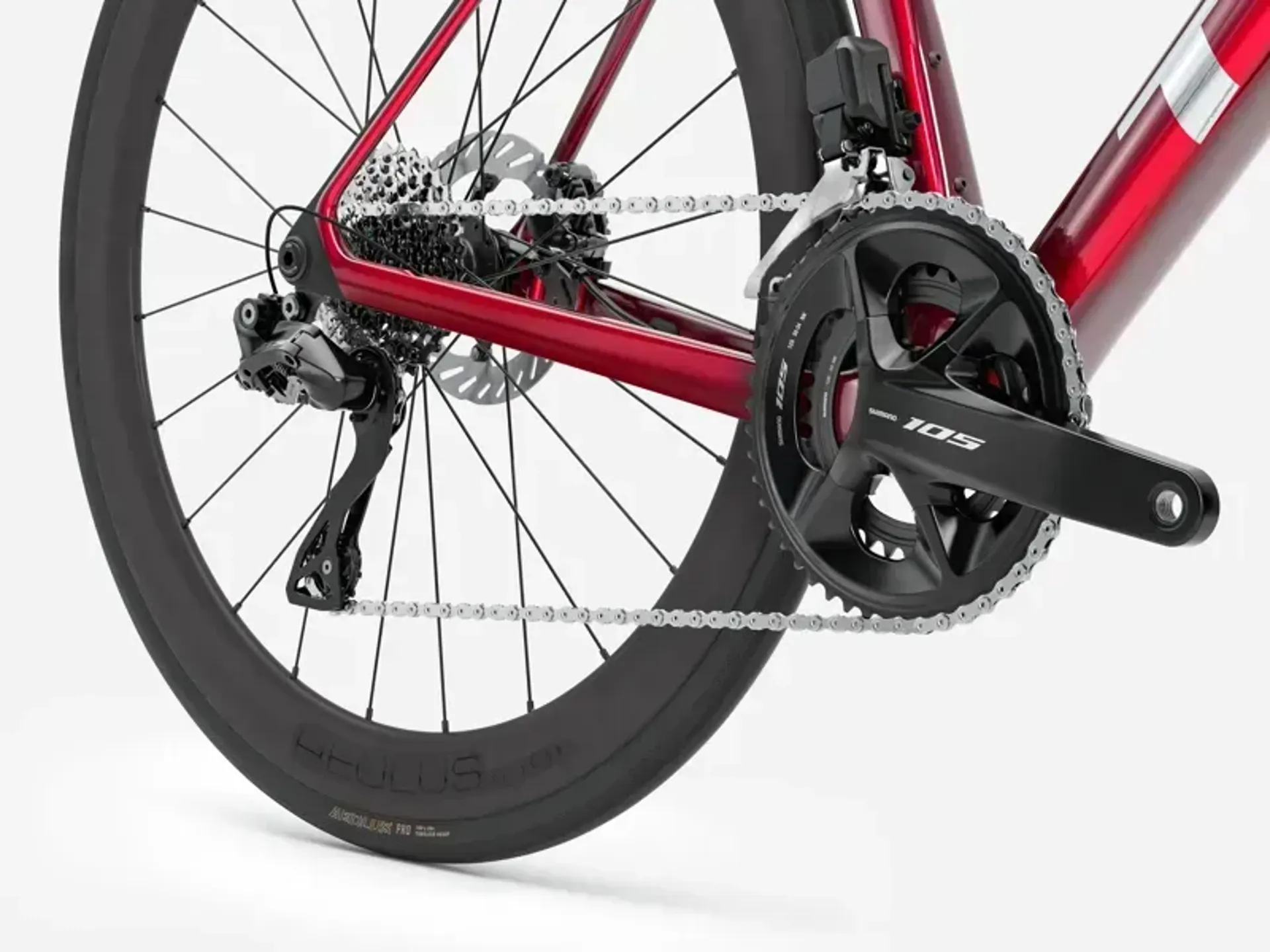

Front derailleur
Shimano 105 R7150 Di2, braze-on, down swing
-
Rear derailleur
Shimano 105 R7150 Di2, 36T max cog
-
Crank
Size: XS, S: Shimano 105 R7100, 50/34, 165 mm length
Size: M, ML: Shimano 105 R7100, 50/34, 170 mm length
Size: L, XL: Shimano 105 R7100, 50/34, 172.5 mm length
-
Bottom bracket
Praxis, T47 threaded, internal bearing
-
Cassette
Shimano 105 7101, 11-34, 12-speed
-
Chain
Shimano SLX M7100, 12-speed
-
Max. chainring size
1x: 54T, 2x: 56/43
-
Wheel front
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
-
Wheel rear
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle
-
Skewer front
Bontrager Switch chamfered thru axle, removable lever
-
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
-
Tyre
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
-
Rim strip
Bontrager TLR
-
Max tyre size
32 mm (as measured, see manual for details)
-
Saddle
Bontrager Aeolus Elite, austenite rails, 145 mm width
-
Seatpost
Madone aero carbon seat post, 0 mm offset, short length
-

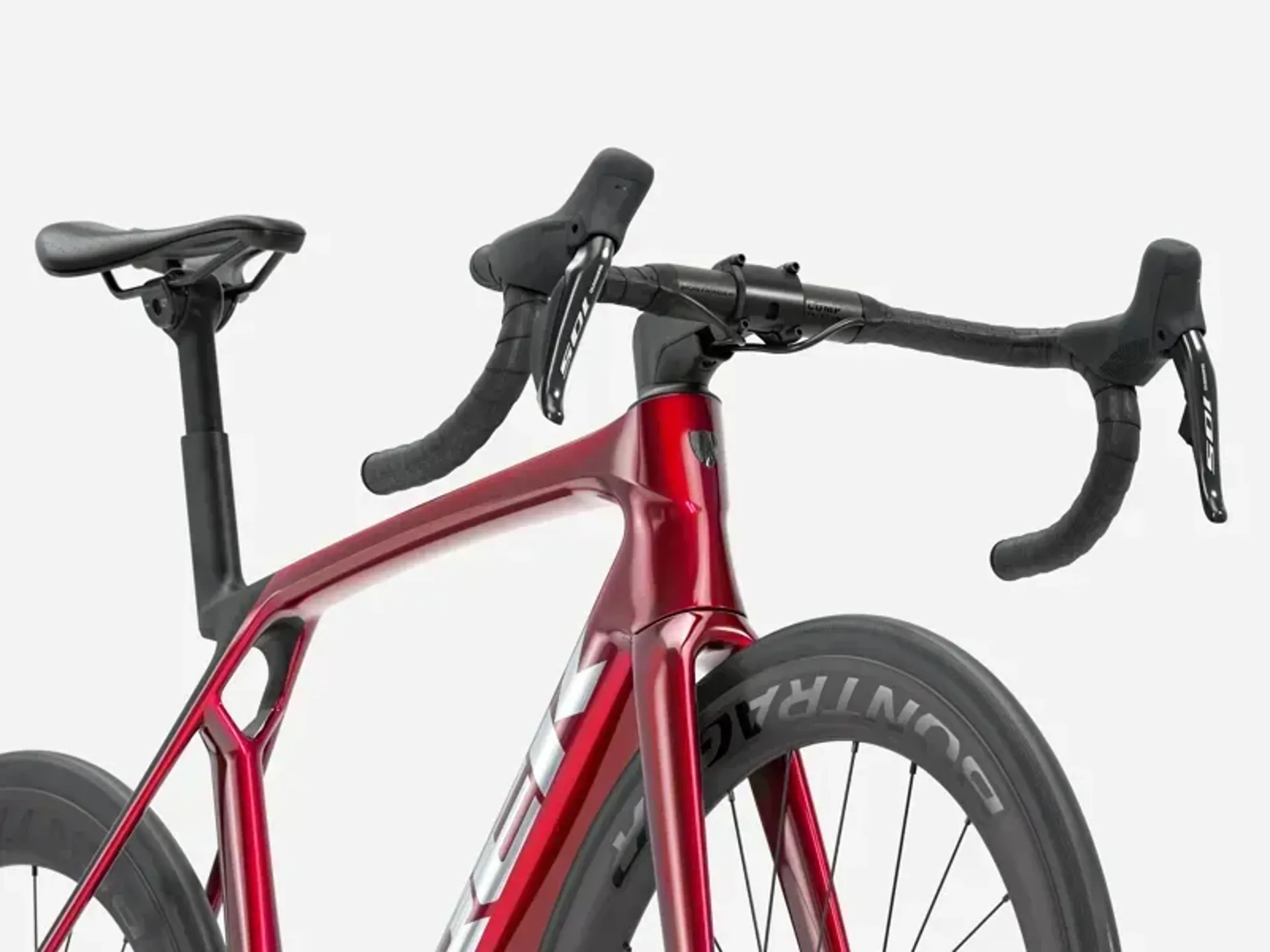

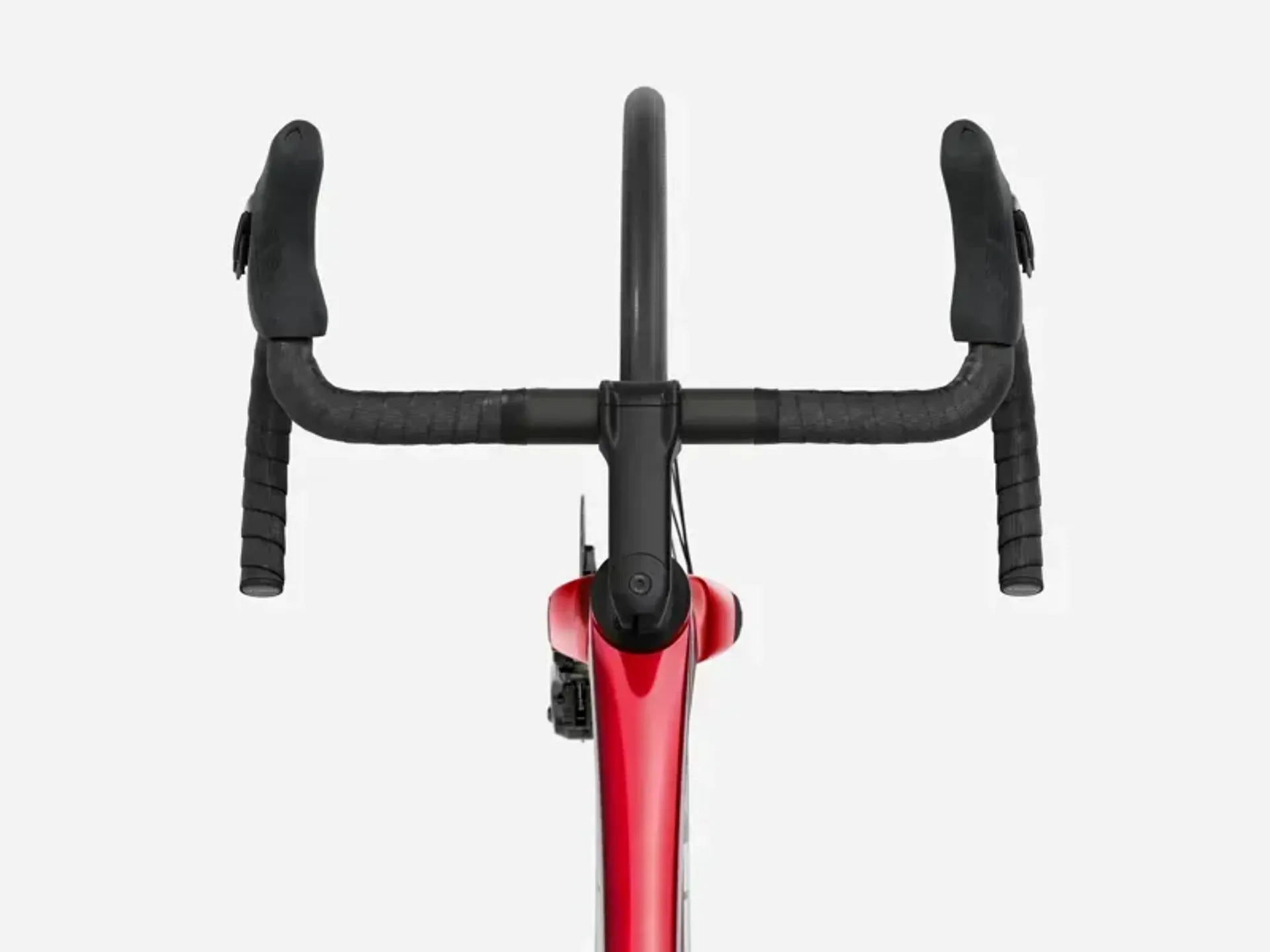

Handlebar
Size: XS: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
Size: S, M: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
Size: ML, L: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
Size: XL: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
-
Handlebar tape
Trek EcoTack
-
Stem
Size: XS: Trek RCS Pro, -7-degree, 80 mm length
Size: S, M: Trek RCS Pro, -7-degree, 90 mm length
Size: ML, L: Trek RCS Pro, -7-degree, 100 mm length
Size: XL: Trek RCS Pro, -7-degree, 110 mm length
-
Rotor size
Max brake rotor sizes: 180 mm front, 160 mm rear
