Frameset |
Frame |
500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle |
*Fork |
Size:XS, S, M, ML, L, XL |

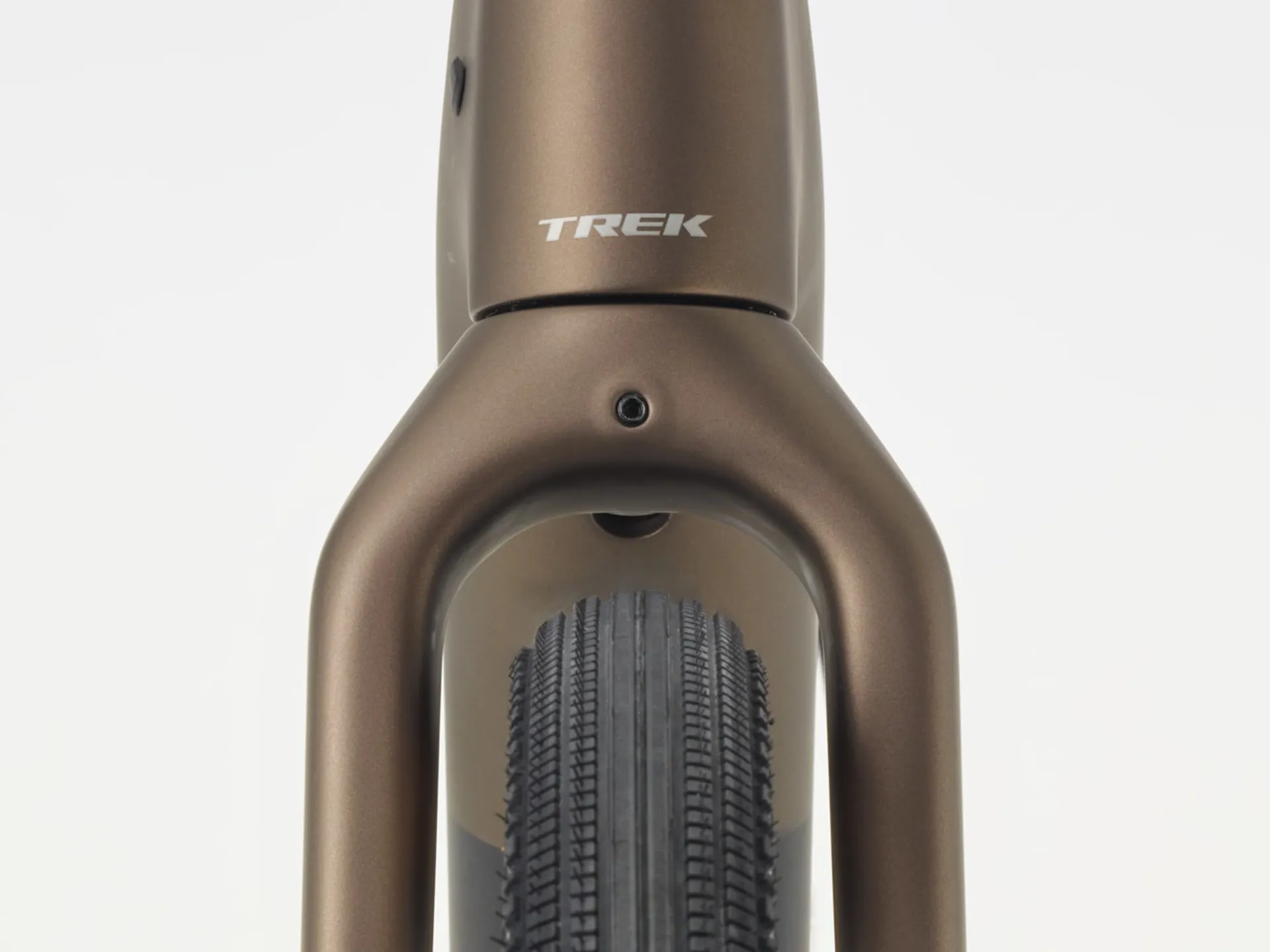

Trek Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
Size:XS, S, M, ML, L, XL |
Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle |
Weight |
Weight |
ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes) |
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
E-system |
Battery |
TQ 360Wh |
Charger |
TQ 4A charger |
Computer |
TQ LED display with Bluetooth & ANT+ connectivity |
Motor |
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
Drivetrain |
Shifter |
Shimano GRX RX820, 12-speed |
Rear derailleur |
Shimano GRX RX822, 51T max cog |

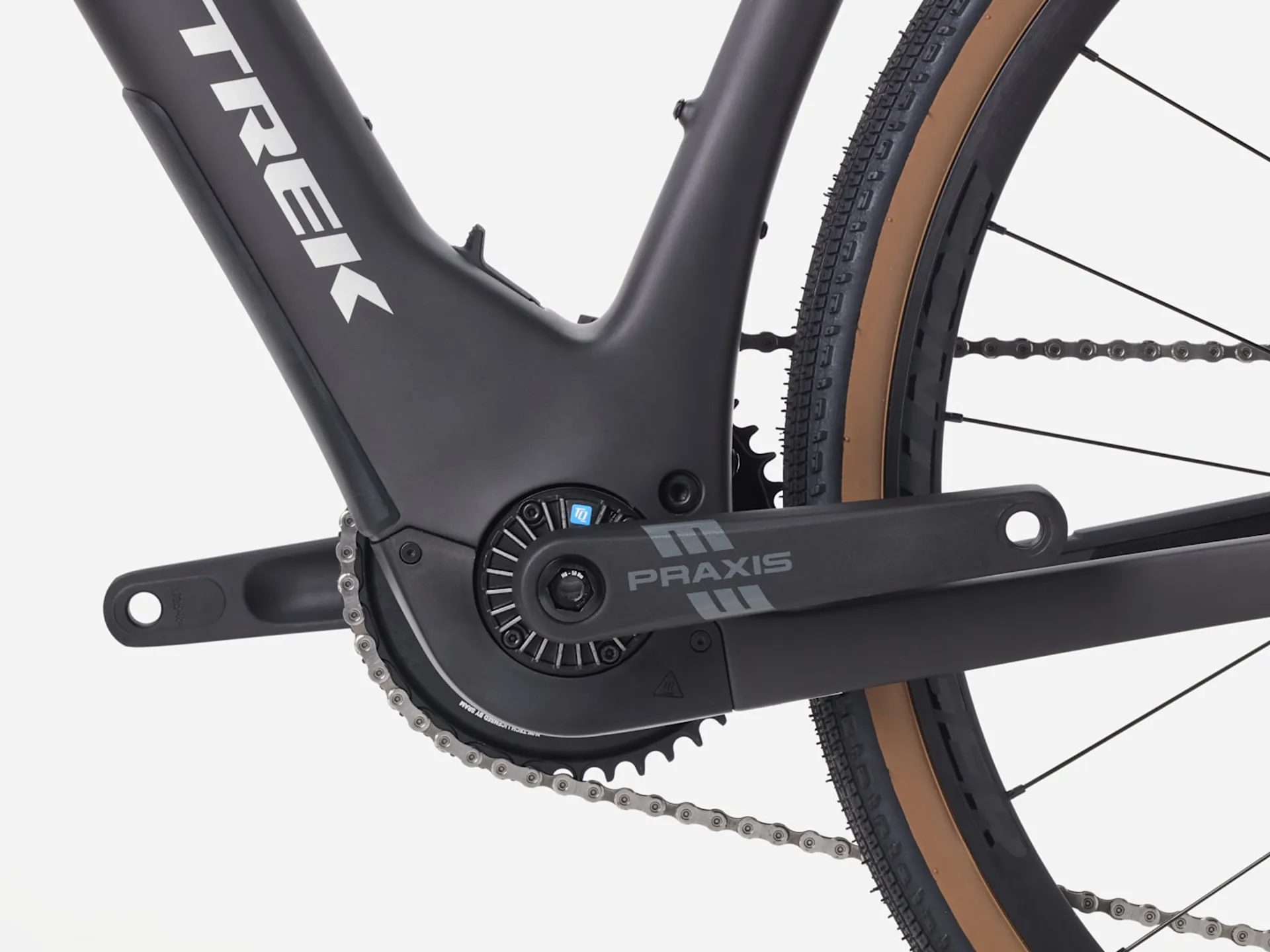

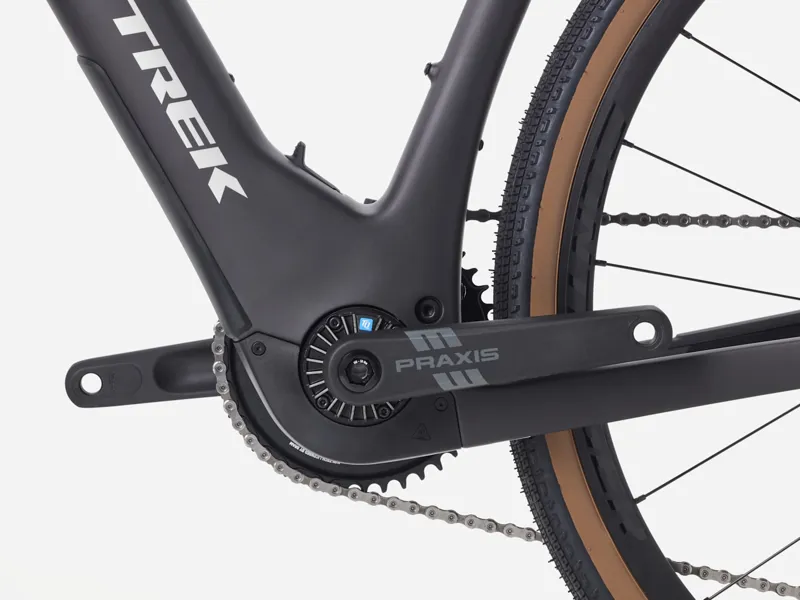

*Crank |
Size:XS, S |
Praxis Alloy, 165 mm length |
Size:M, ML |
Praxis Alloy, 170 mm length |
Size:L, XL |
Praxis Alloy, 172.5 mm length |
Cassette |
Shimano XT M8200, 10-51, 12-speed |
Chain |
Shimano XT M8100, 12-speed |
Max. chainring size |
1x: 44T |
Wheels |
Wheel front |
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle |
Skewer front |
Bontrager Switch chamfered thru axle |
Skewer rear |
Bontrager Switch chamfered thru axle, removable lever |
Tyre |
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
Tyre part |
Bontrager TLR sealant, 180 ml/6 oz |
Max tyre size |
50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details) |
Components |
Saddle |
Verse Short Comp, steel rails, 145 mm width |
Seatpost |
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
*Handlebar |
Size:XS, S |
Bontrager Elite Gravel, alloy, 40 cm width |
Size:M, ML |
Bontrager Elite Gravel, alloy, 42 cm width |
Size:L |
Bontrager Elite Gravel, alloy, 44 cm width |
Size:XL |
Bontrager Elite Gravel, alloy, 46 cm width |
Handlebar tape |
Bontrager Supertack Perf tape |
*Stem |
Size:XS |
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
Size:S, M |
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
Size:ML, L |
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90mm length |
Size:XL |
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100mm length |
Brake rotor |
Shimano CL800, CentreLock, 160 mm |
Brake lever |
Shimano GRX RX820, 12-speed |
Rotor size |
Max brake rotor sizes: 180 mm front and rear |
|
*Please note – spec applies to all sizes unless listed separately |
