Frameset | |

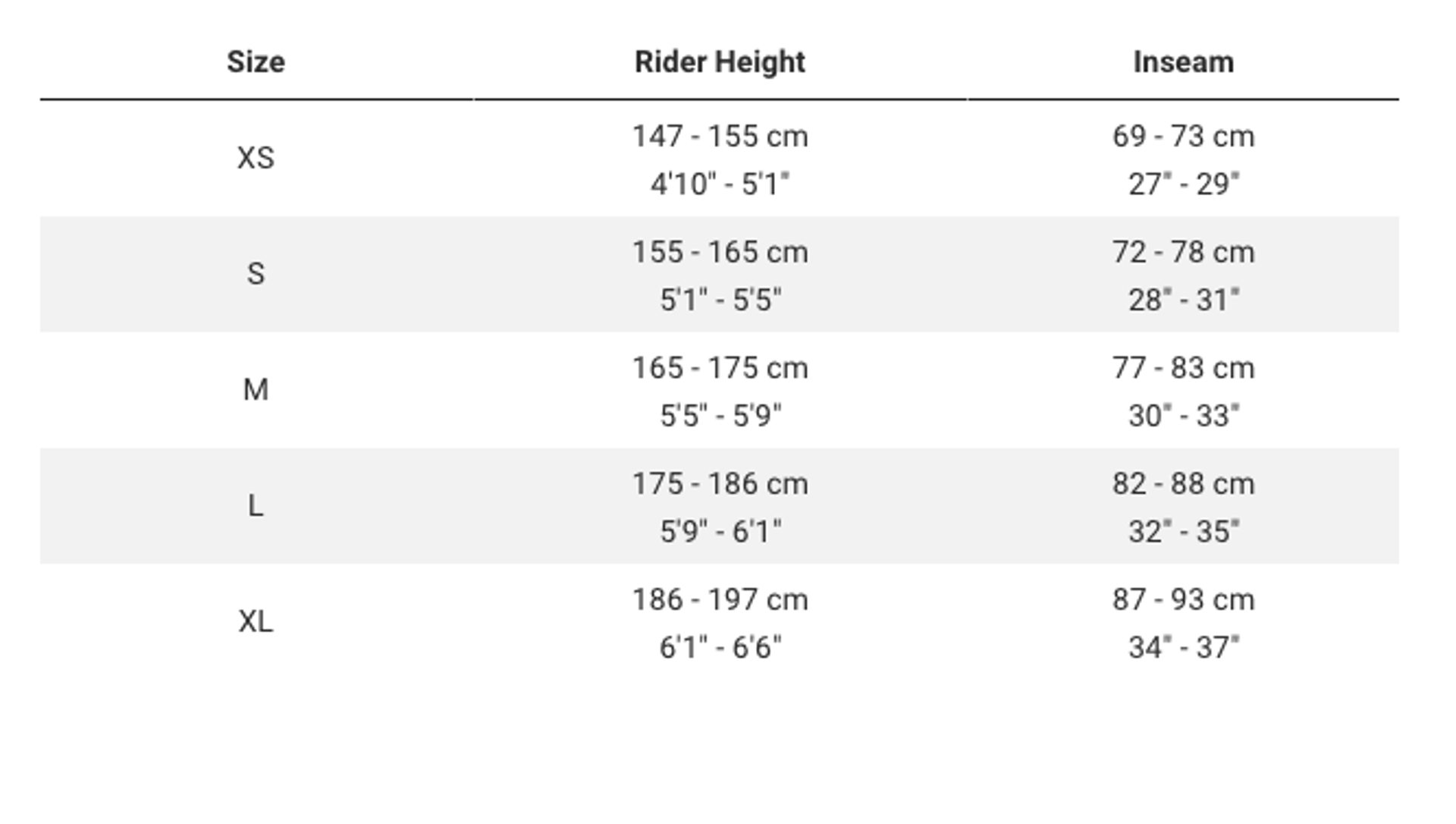

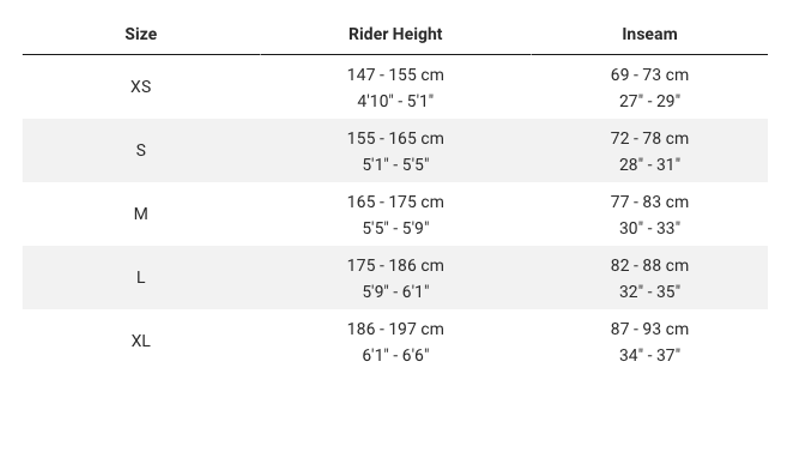

| *Frame | Size:XS, S, M, L, XL |
| Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5mm QR |
| *Fork | FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR |
| |
Wheels | |
| *Front Hub | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| |
| *Front Skewer | 139x5 mm bolt-on |
| |
| *Rear Hub | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| |
| *Rear Skewer | 152x5 mm QR |
| *Tire | Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm |
| |
Drivetrain | |
| *Shifter | Size:S, XL, XS, L, M |
| Shimano EF500, 2-speed |
| Size:S, XL, XS, L, M |
| Shimano EF500, 8-speed |
| *Front Derailleur | Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull |
| |
| *Rear Derailleur | Shimano Acera M3020-8, 40T max cog |
| |
| *Crank | Forged alloy, 46/30, 170 mm length |
| |
| *Bottom Bracket | Sealed cartridge, 68 mm |
| |
| *Cassette | Shimano 8-speed, 12-32T |
| |
| *Chain | KMC Z8.3 |
| |
| *Pedal | Wellgo nylon platform |
| |
Components | |
| *Saddle | Bontrager Sport |
| *Seatpost | Size:S, XS, M |
| Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| Size:XL, L |
| Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length |
| *Handlebar | Size:S, XS, L, M |
| Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width |
| Size:XL |
| Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width |
| *Grips | Trek Line Ergonomic Comp, lock-on |
| *Stem | Size:S, XS, MBontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length |
| Size:XL, LBontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
| *Brake | |
| Tektro MD-U310 mechanical disc |
| *Brake Rotor | |
| Tektro wave, 6-bolt, 160 mm |
| |
Weight | |
| Weight | M - 13.00 kg / 28.67 lbs |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
| |
| *Please note – spec applies to all sizes unless listed separately |
