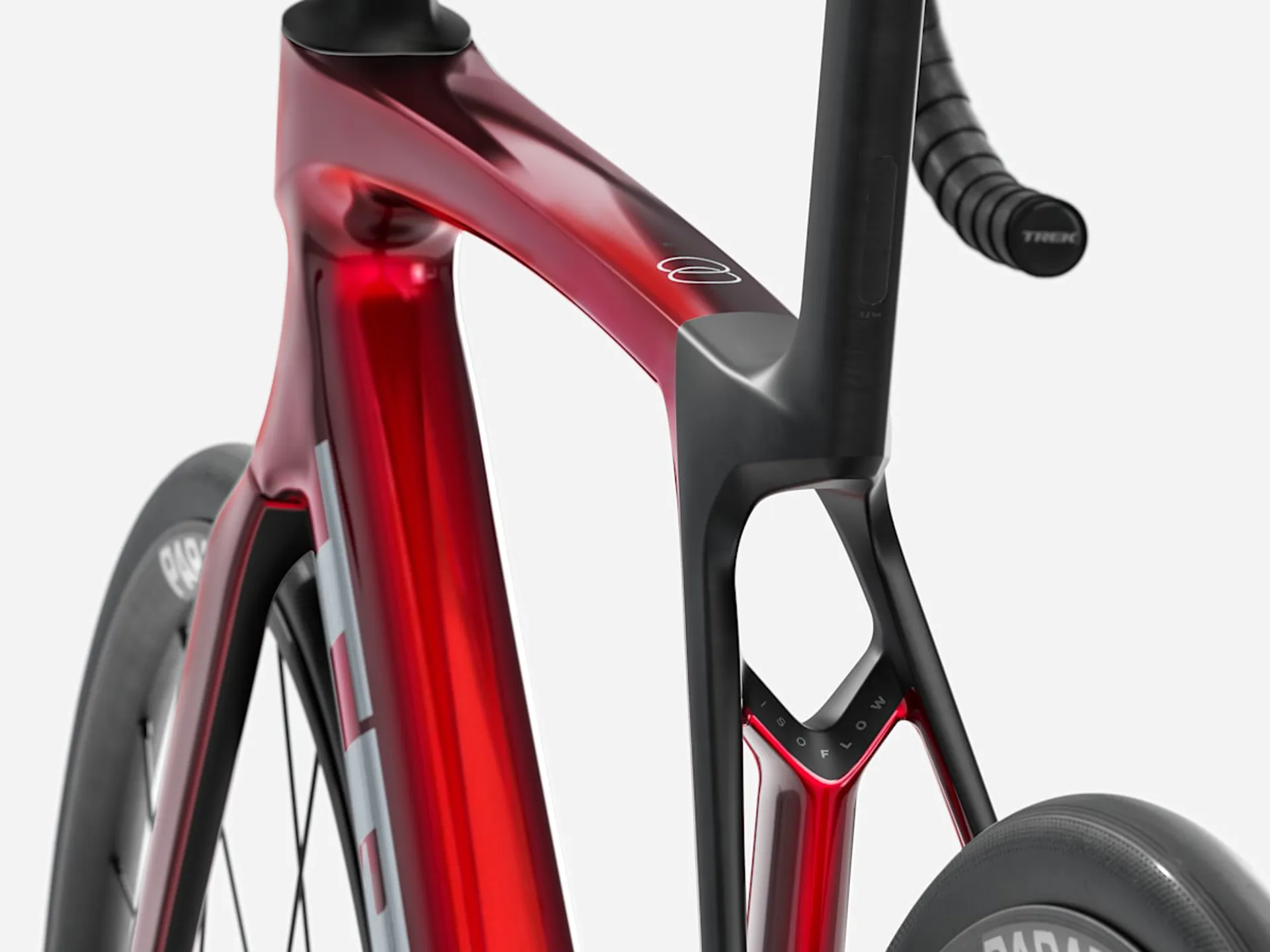

Frame
Size: S, XL, XS, L, M, ML. 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
-
Fork
Size: S, XL, XS, L, M, ML. Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle
-
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
-
Front Derailleur
Size: S, XL, XS, L, M, ML. Shimano 105 R7100, braze-on, down swing
-
Rear Derailleur
Size: S, XL, XS, L, M, ML. Shimano 105 R7100, 36T max cog
-

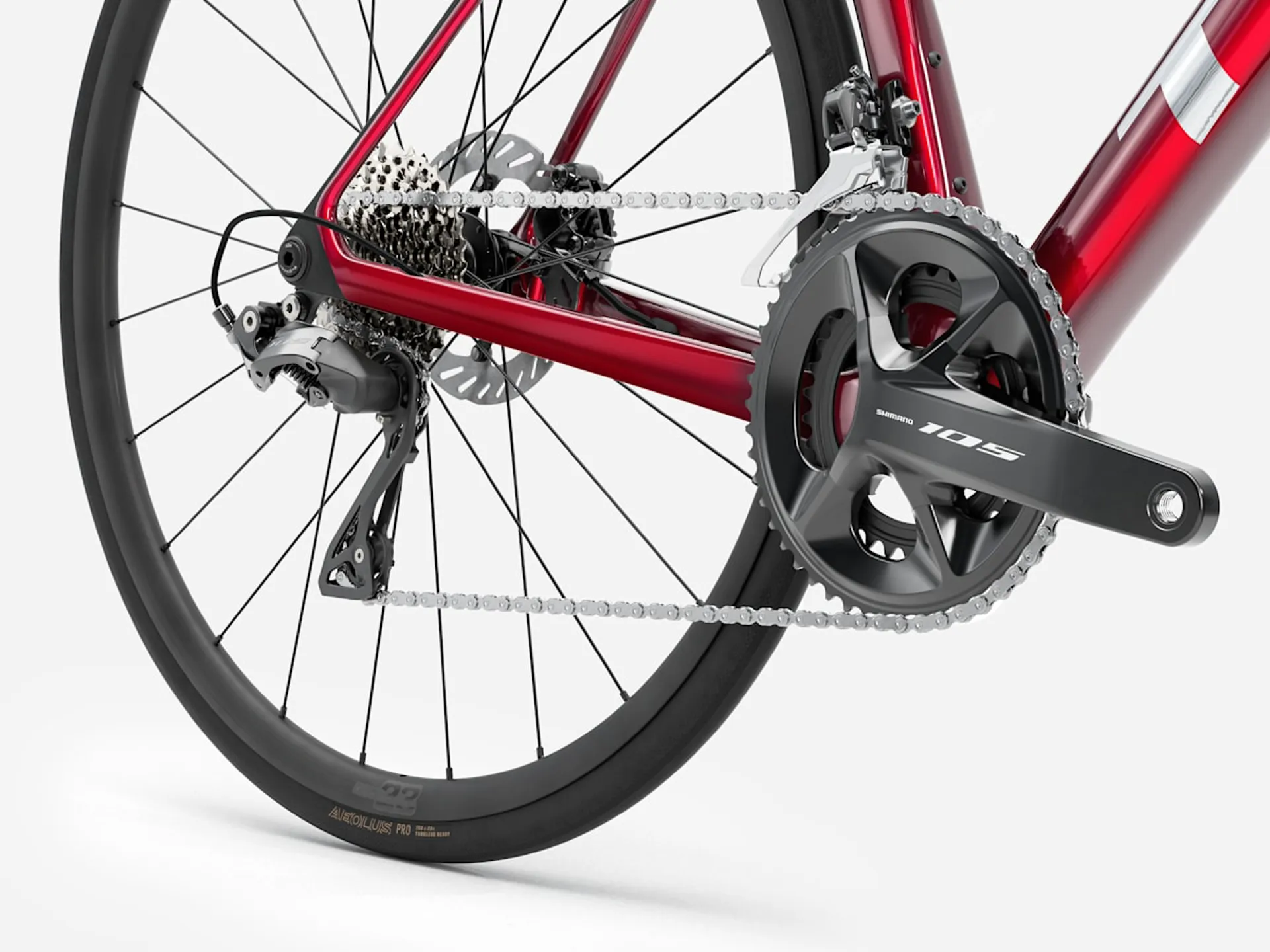

Crank
Size: S, XS. Shimano 105 R7100, 50/34, 165 mm length
-
Crank
Size: M, ML. Shimano 105 R7100, 50/34, 170 mm length
-
Crank
Size: XL, L. Shimano 105 R7100, 50/34, 172.5 mm length
-
Bottom Bracket
Size: S, XL, XS, L, M, ML. Praxis, T47 threaded, internal bearing
-
Cassette
Size: S, XL, XS, L, M, ML. Shimano 105 7101, 11-34, 12-speed
-
Chain
Size: S, XL, XS, L, M, ML. Shimano SLX M7100, 12-speed
-
Max chainring size
1x: 54T, 2x: 56/43
-
Front Hub
Size: S, XL, XS, L, M, ML. Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
-
Front Skewer
Size: S, XL, XS, L, M, ML. Bontrager Switch chamfered thru axle
-
Rear Hub
Size: S, XL, XS, L, M, ML. Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
-
Rear Skewer
Size: S, XL, XS, L, M, ML. Bontrager Switch chamfered thru axle, removable lever
-
Rim
Size: S, XL, XS, L, M, ML. Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
-
Spokes
Size: S, XL, XS, L, M, ML. 14 g stainless steel, black
-
Tire
Size: S, XL, XS, L, M, ML. Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
-
Max tyre size
32 mm (as measured, see manual for details)
-
Saddle
Size: S, XL, XS, L, M, ML. Bontrager Aeolus Elite, austenite rails, 145 mm width
-
Seatpost
Size: S, XL, XS, L, M, ML. Madone aero carbon seat post, 0 mm offset, short length
-

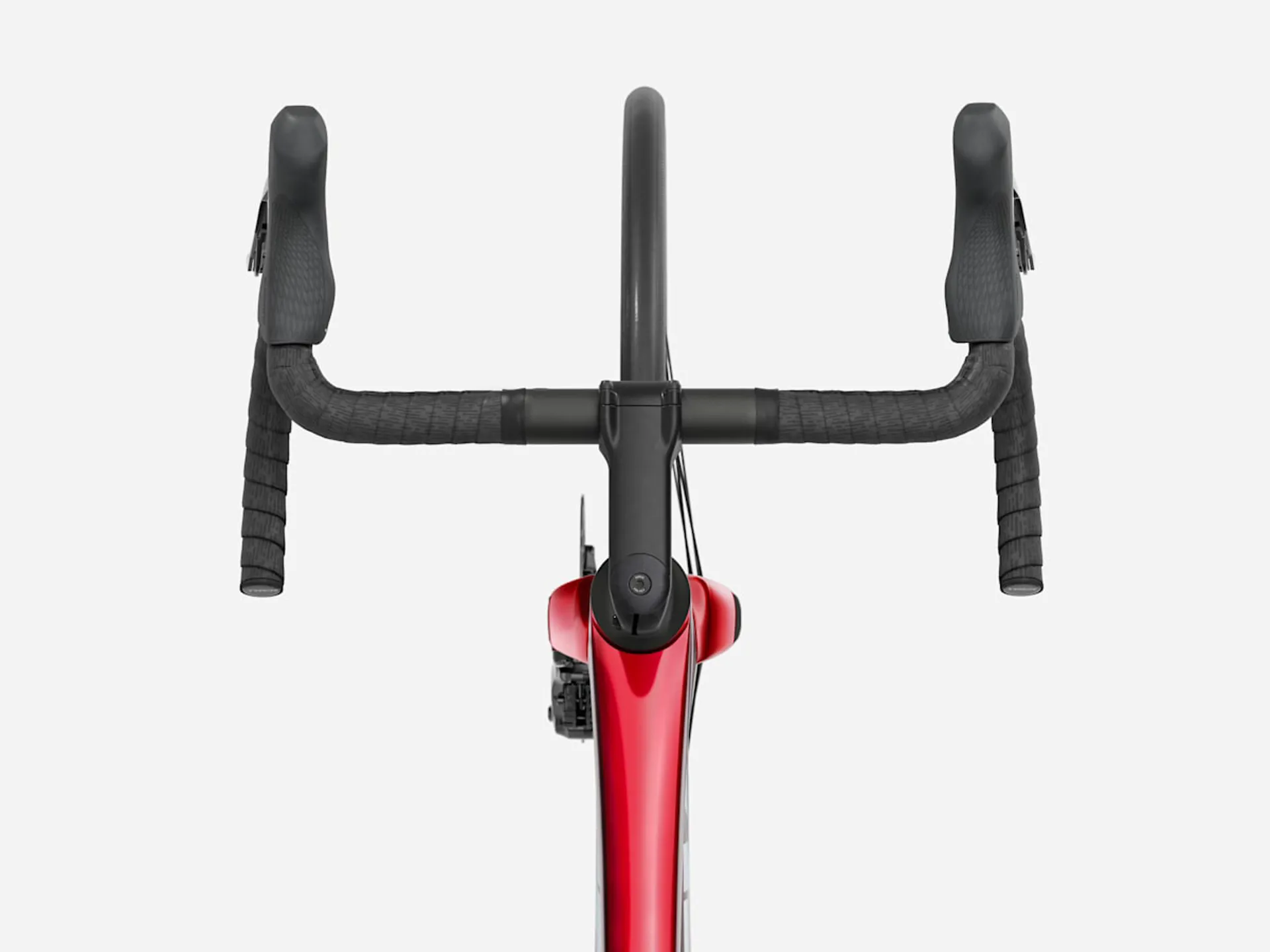

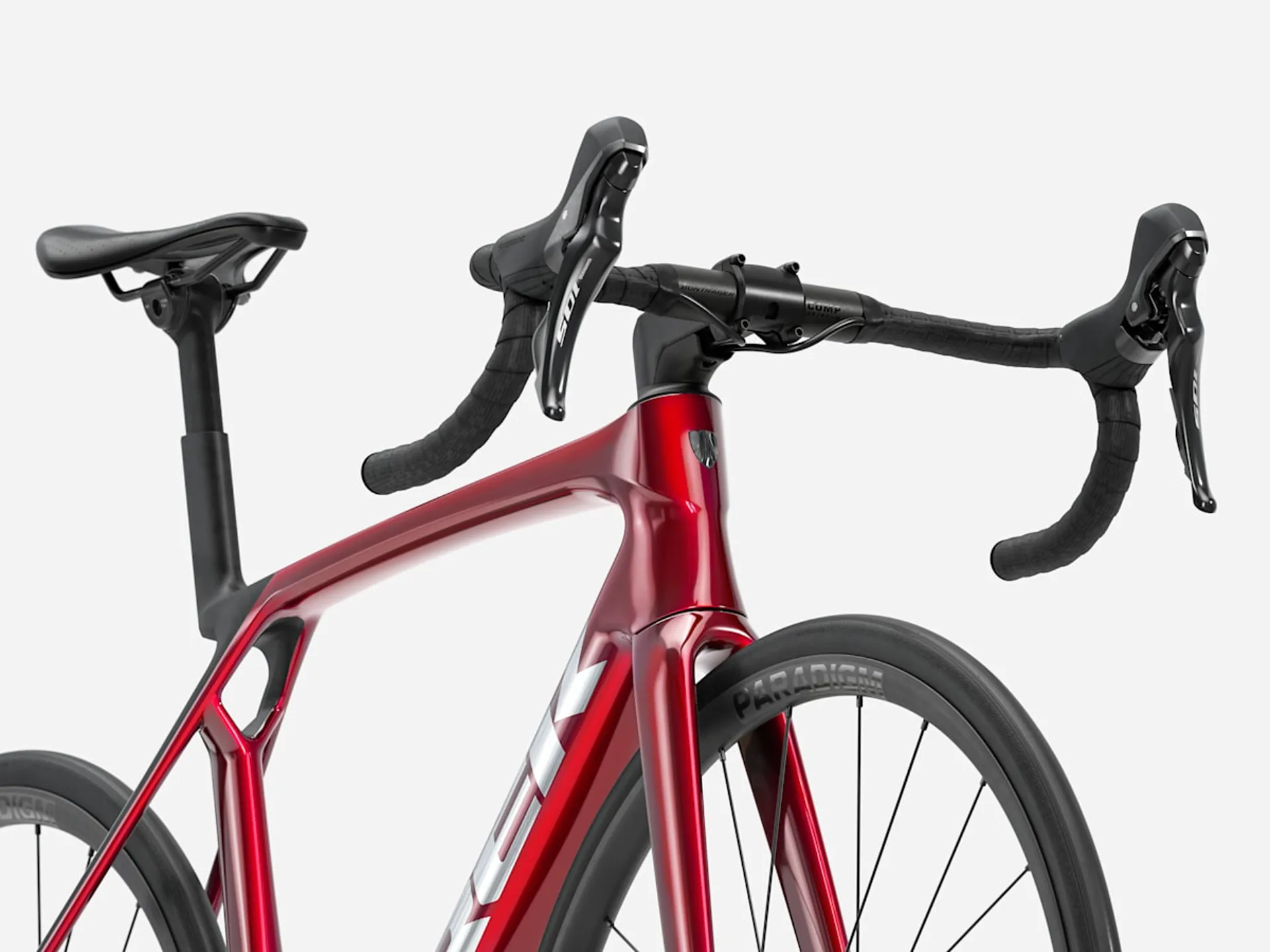

Handlebar
Size: XS. Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
-
Handlebar
Size: S, M. Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
-
Handlebar
Size: L, ML. Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
-
Handlebar
Size: XL. Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
-
Handlebar Tape
Size: S, XL, XS, L, M, ML. Trek EcoTack
-
Stem
Size: XS. Trek RCS Pro, -7-degree, 80 mm length
-
Stem
Size: S, M. Trek RCS Pro, -7-degree, 90 mm length
-
Stem
Size: L, ML. Trek RCS Pro, -7-degree, 100 mm length
-
Stem
Size: XL. Trek RCS Pro, -7-degree, 110 mm length
-
Rotor size
Max brake rotor sizes: 180 mm front, 160 mm rear
